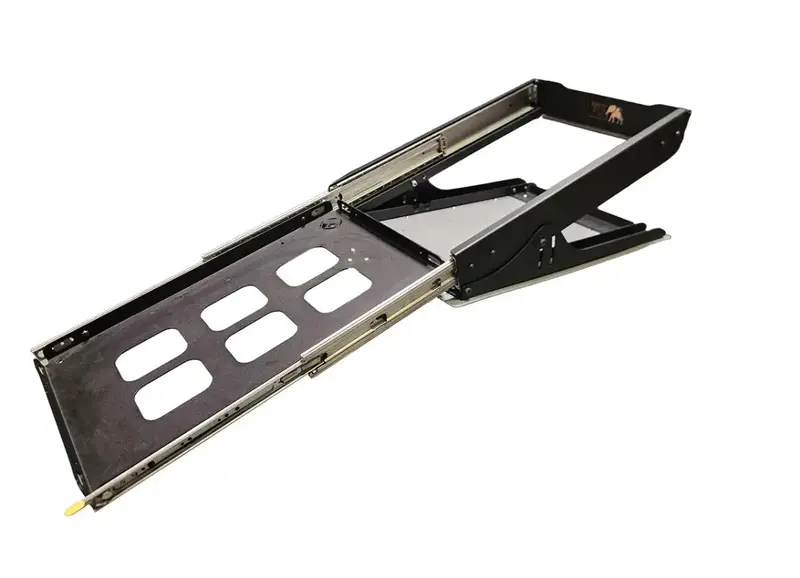

Side-Pull Sliding Drawer System

Description

Side Pull Fridge Slide

1/8″ Aluminum Slides in Four different sizes
See below for dimensions:

Our Extreme Duty Flat Slides, uses top of the line, locking slide tracks. These are tough, rugged cargo slides.

Standare Side Pull Slide:
Outside dimensions:  28″ wide x 19″ deep (Foot print)
 Inside pan dimensions:  28″ wide x 17″
Slide weight: 38 pounds.
Fridge size:  35L to 52L
Mid-size Side Pull  Slide:
 Outside dimensions:  32″ wide x 19″ deep (Foot print)
 Inside pan dimensions:  30″ wide x 18.25″
Slide weight: 38 pounds.
Fridge size: 55L to 60L
Jumbo Side Pull Slide:     Outside dimensions:  35.75″ wide x 21″ (Foot print)
   Inside pan dimensions:  34″ wide x 20″
Slide weight: 40 pounds.
Fridge size: 60L to 95L
Super Jumbo Side Pull Slide:     Outside dimensions:  40.75″ wide x 23″ (Foot print)
 Inside pan dimensions:  38-3/8″ wide x 22-5/8″
Slide weight: 55 pounds.     Fridge size: 95L to 110L
The fridge pan will place the fridge or cargo 1″ above the bolt down deck.See FAQs for additional fridge and slide clearances.
Slides may differ from photos.
Cutting Board is optional, 12 x 18 inches.  Fridge will sit 2.5 inches above the bolt down deck.

 Slides ship from 1 to 5 days after order is placed.
