Description
Full adjustment. Total Performance. The XL Linkable was designed for the enthusiast looking to take charge with a light package that is completely customizable for their needs. This kit includes 7 XL Sports, Links, vehicle specific mounting brackets, wiring harness and rock guards. A pre-load support bracket is included to ensure stiffness in the most extreme terrain.

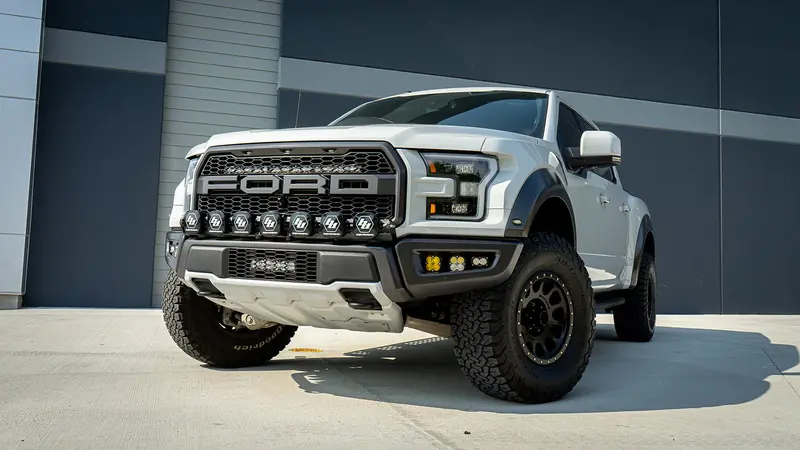

This kit includes all the necessary components to outfit your 2017-2020 Ford Raptor with 7 XL Linkables. This kit is designed for the enthusiast who has a factory upfitter system in their truck or sPOD / Switch Pros unit.
(Patent Pending)
Please Note: This lightbar may interfere with a portion of the viewing window in front facing camera equipped vehicles.
Baja Designs Features:
- Satisfactions Guarantee – 30 Day Money Back Guarantee
- Limited Lifetime Warranty – Complete Purchase Protection
- uService – Replaceable Lenses And Optics
- ClearView – All The Light, Right Where You Need It.
- MoistureBlock – Waterproof, Rain Proof, Submersible
- CopperDrive – Only LED Driven At 100 percent
- 5000K Daylight – Less Driver Fatigue, Natural Color
Specifications:
- Lumens: 22,050 Utilizing 28 LEDs
- Wattage/Amps: 182W / 14A
- LED Life Expectancy: 49,930 Hours
- Front Lens: Hard Coated Polycarbonate
- Housing: Powder Coated Cast Aluminum
- Bezel: Billet Machined Aluminum
- Hardware and Bracket Material: Stainless Steel
- Exceeds MIL-STD810G (Mil-Spec Testing)
- Built-In Overvoltage Protection
- IP69K (Waterproof, Submersible to 9ft)
- IK10 Compliant (Mechanical Impact Testing)
Includes:
- x3 XL Sport Spot LED Light
- x2 XL Sport Driving/Combo LED Light
- x2 XL Sport Wide Cornering LED Light
- x7 XL Sport Rock Guards
- Support kit
- Upfitter Harness
- Super Duty Brackets
Application:
(2017- 2020) Ford Raptor
Patterns:
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (44 degree) and spot (6 degree) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 44 degree flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 and 2)
High Speed Spot: A longer and narrower 6 degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 and 5)
Specifications:
| bracket_material | Stainless Steel |
| brackets_included | Yes |
| brand_logo | https://www.asapnetwork.org/sites/default/files/brands/icons/baja%20asap.jpg |
| height | 8.0 |
| ik10_compliant | IK10 Compliant (Mechanical Impact Testing) |
| last_update | 2022-05-15 03:47:18 |
| length | 60.0 |
| life_span_expectancy | 49,930 Hours |
| LTL | N |
| prop_65_warning | CALIFORNIA WARNING: Cancer and Reproductive Harm -www.P65Warnings.ca.gov |
| Series | XL Series |
| sold_as | Kit |
| Universal | No |
| vehicle_type | Truck/SUV |
| waterproof_rating | IP69K (Waterproof up to 9ft Pressure Washable) |
| weight | 16.0 |
| width | 8.0 |
